---Hot-dip steel galvanized square tube structure, lightweight and highly formable.
This client was referred by another client from Cebu, Philippines, and they are friends. The commercial center is being built to lease to various merchants.
| Philippines commercial center ---Hot-dip steel galvanized square tube structure, lightweight and highly formable. | |||||
| Country | Philippines | Year | 2022 | ||
| Project Information | |||||
| Project | Commercial Building | Dimension | 36mx18mx3m | Wind speed | 160km/h |
| Material | Hot galvanized steel tube | Paint | Hot galvanized | Purline | C purline |
| Roofing | PPGI single corrugated sheet +Fiber glass wool roll with stainless mesh | Wall | V950 50mm EPS sandwich panel V950 50mm EPS | Ceiling | V850 0.37mm PPGI single corrugated sheet ceiling V850 0.37mm |
| Door | Roller-up door | Gutter | 1mm 304 stainless gutter | Containers | 3x40HQ |

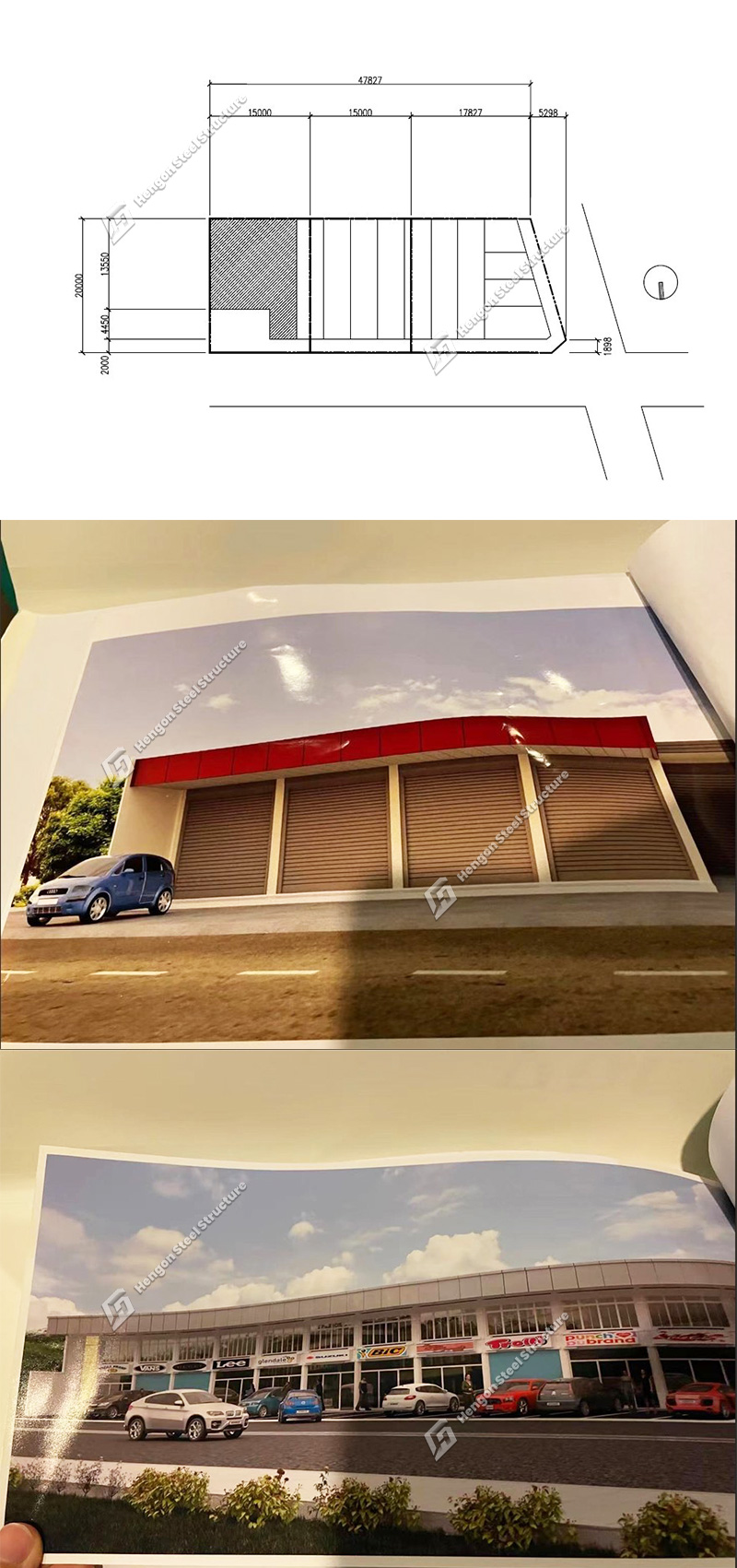

Initially, this client provided a simple floor plan. After confirming the height, wind speed, doors, windows, wall and ceiling materials, and whether there would be a suspended ceiling, our engineering team designed the plan for the client. Since the height is only 3 meters, to save costs, we suggested using a hot-dip galvanized square tube structure design.

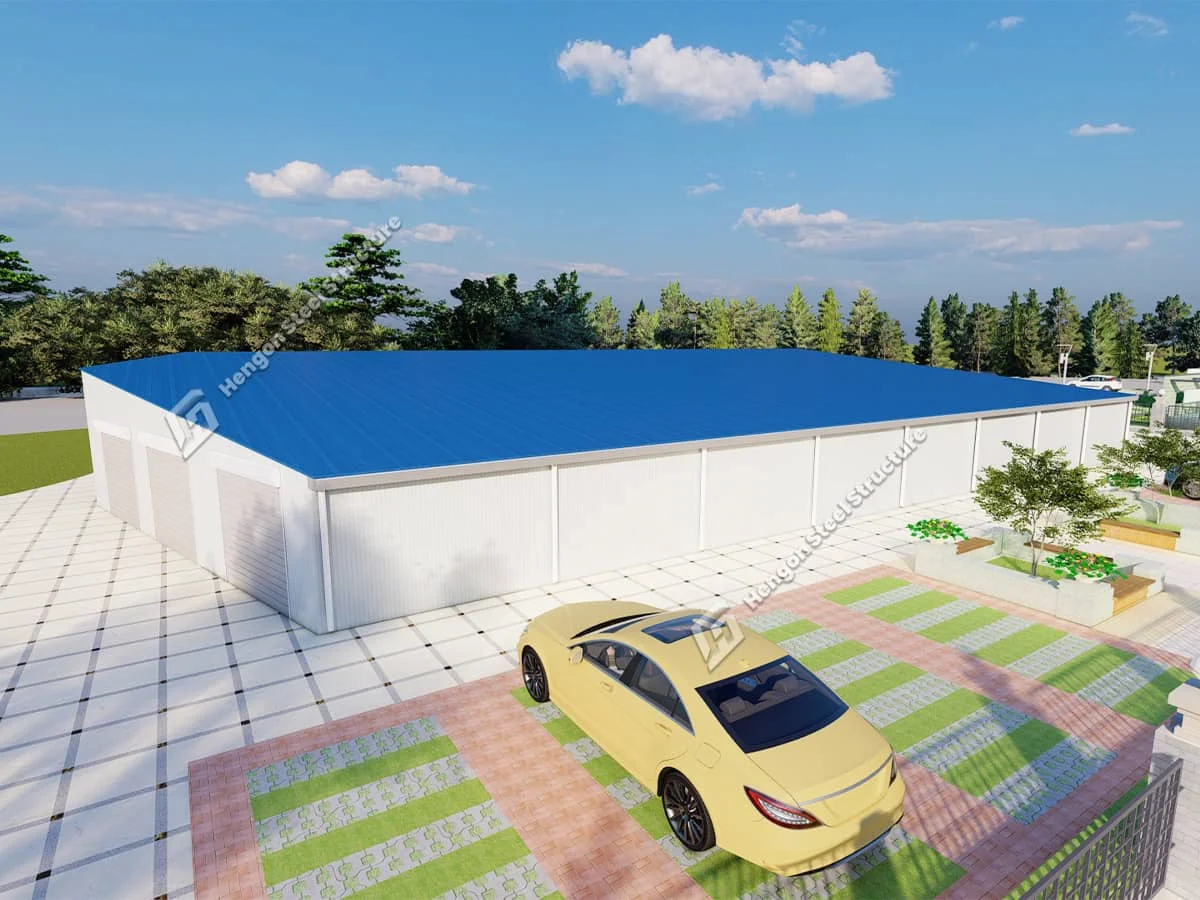

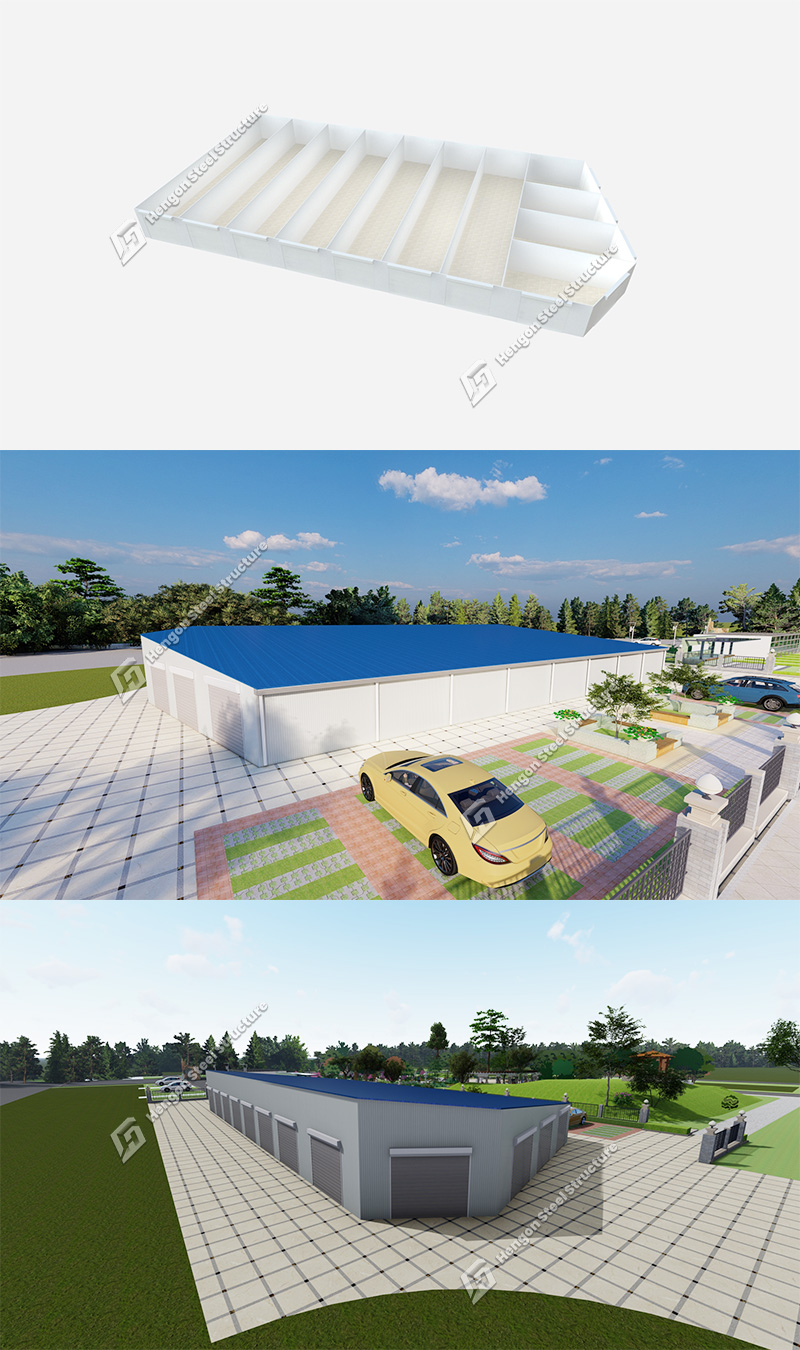

After providing the design, this client requested us to do 3D drawing for their overall Assessment.

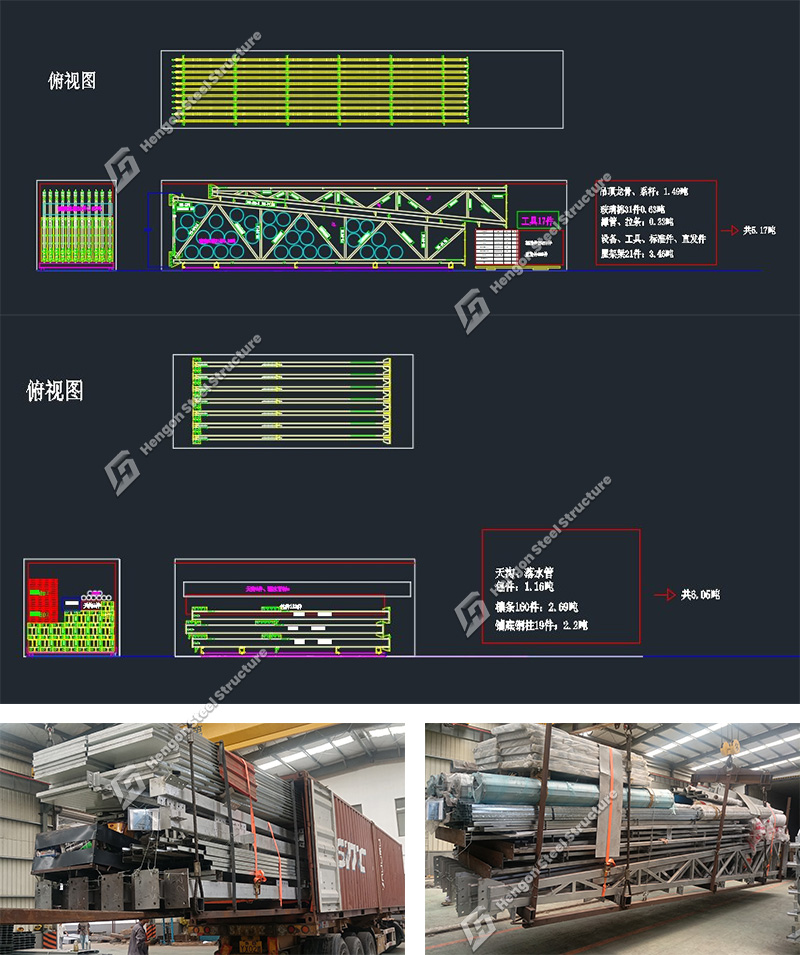

After confirming that it was the desired design, the client finalized the order. We delivered the goods on schedule 30 days later. For every project, we do professional loading scenario for saving containers.

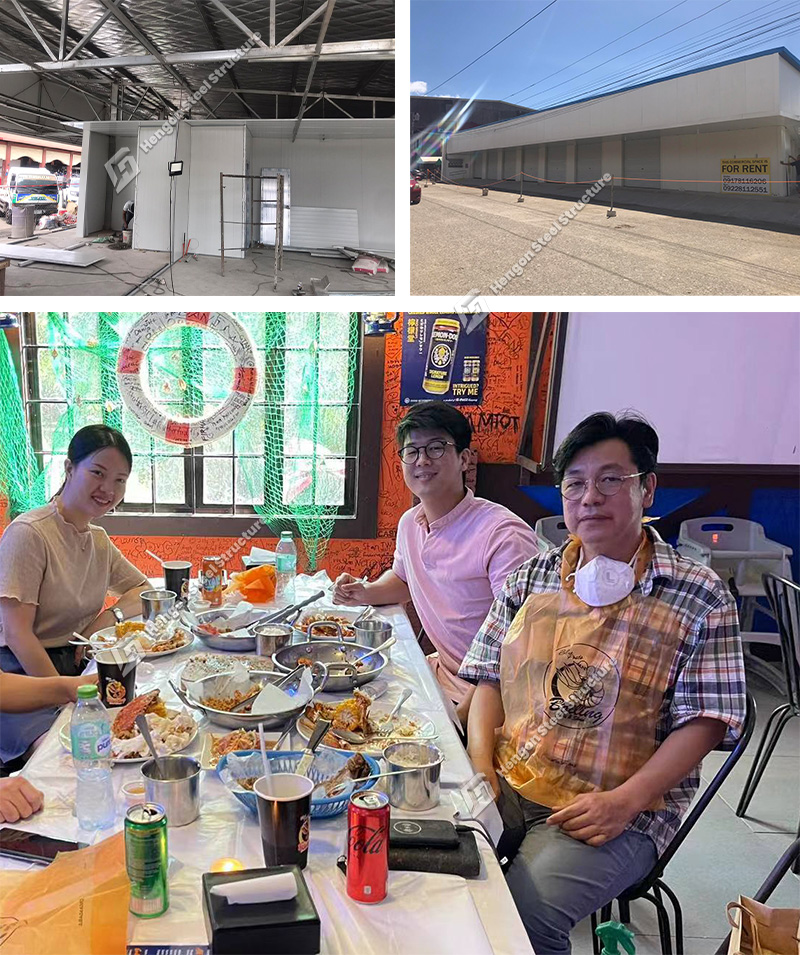

In 2022, we visited the construction site to inspect the project. This client had installed everything very well and was also very satisfied with our products.

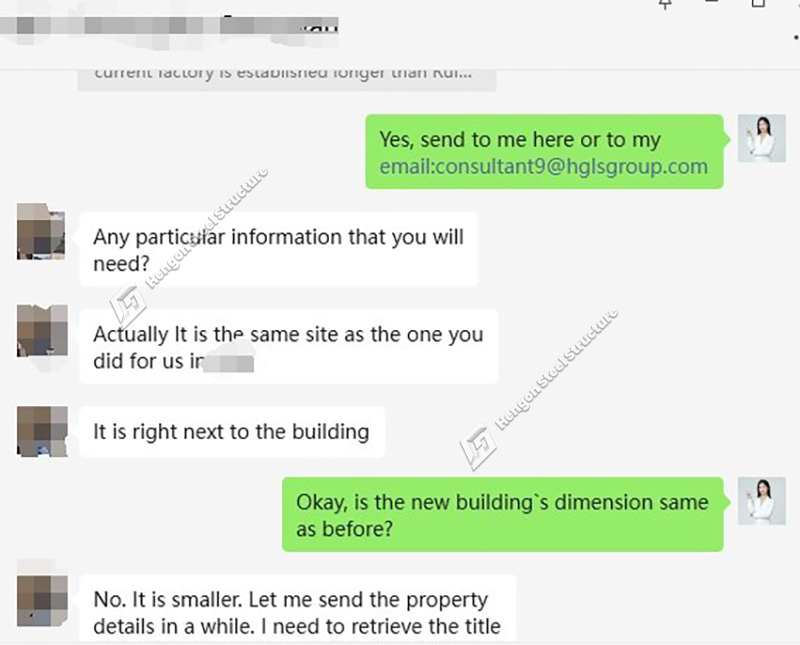

Now, in 2024, this client is in communication with us regarding their new building.
