--Only two anchor bolts per column in the workshop with 5T crane

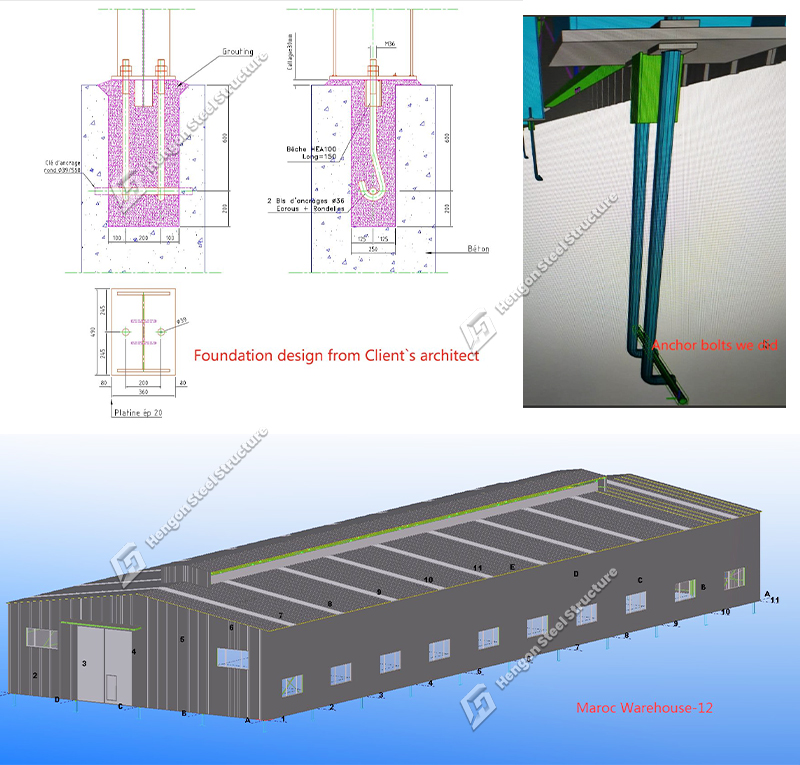

After multiple discussions, this client still chose the hinged base connection method to save on construction costs, using only two sets anchor bolts per column.
| Morocco workshop --Only two anchor bolts per column in the workshop with 5T crane | |||||
| Country | Morocco | Year | 2020 | ||
| Project Information | |||||

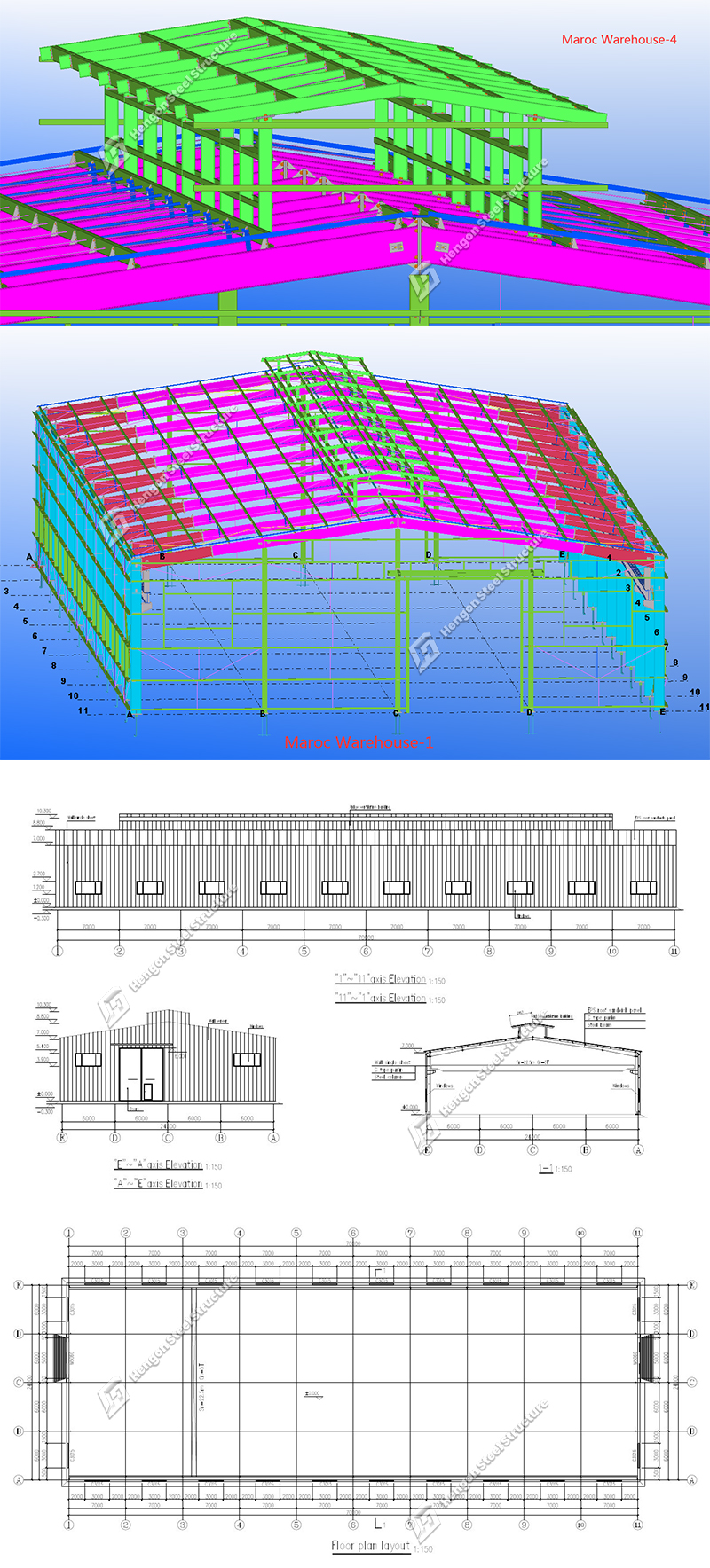

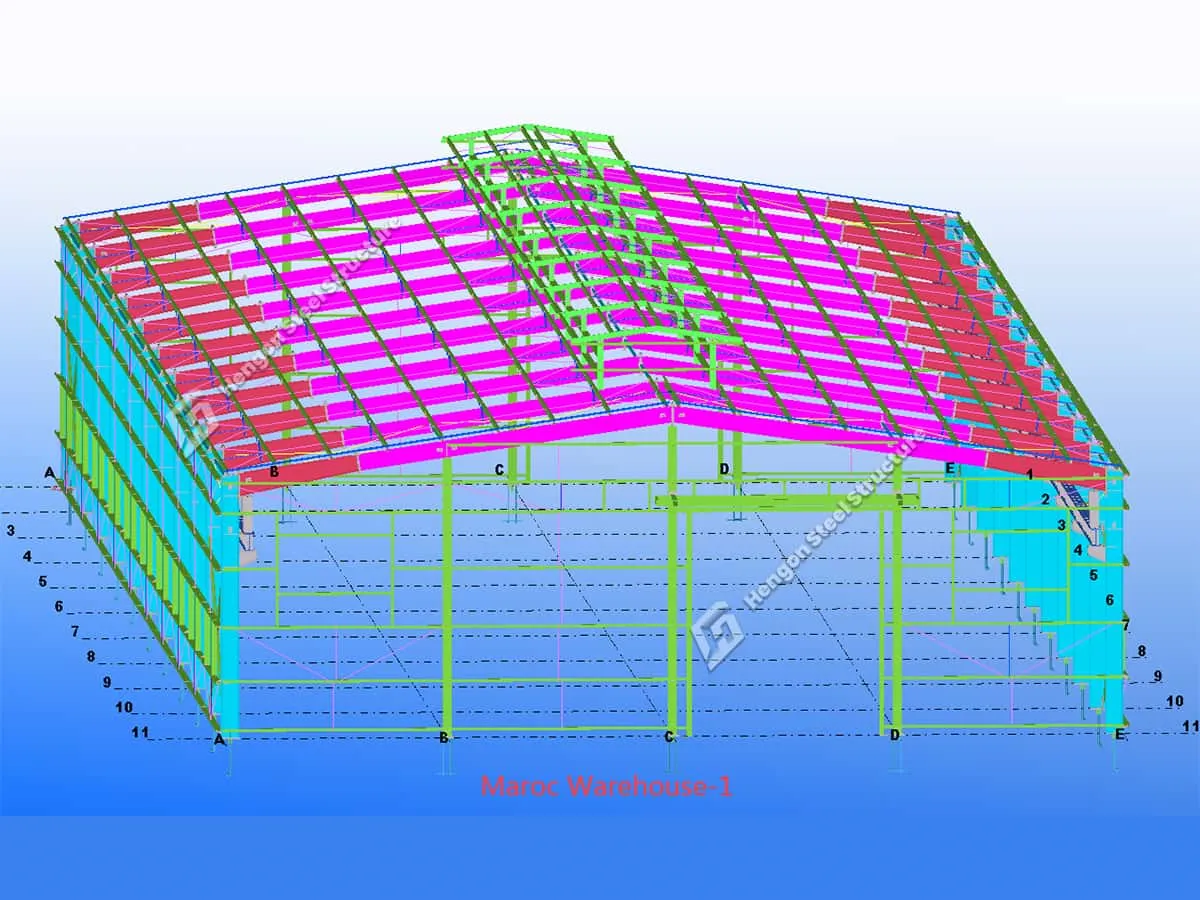

| Project | Steel Structure workshop | Dimension | 70*24*7m（with sky window） | Wind speed | 29m/s |
| Material | H-steel | Paint | Alykd paint | Purline | C purline 160x60x20x2 |
| Roof | EPS sandwich panel (0.47mm+50mm 12kg+0.37mm)+1mm sky light sheet | Wall | PPGI single corrugated sheet V900 0.5mm | Window | Alluminum alloy sliding window, 1mm frame+0.5mm tempered glass 3mx1.5mx24 |
| Door | Sandwich panel sliding door 5mx6mx2 | Containers | 6x40HQ | ||
In our engineer's knowledge, this design is unreasonable and unsafe for steel structure buildings, so we communicated with this client many times to ensure their design was good. This client's architect is also very professional and likely integrated local standards, so we ultimately manufactured according to this client's design requirements.

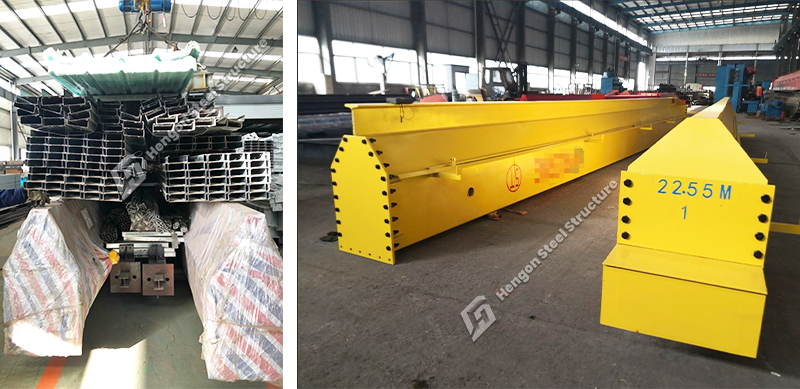

This steel structure workshop is also equipped with a 5-ton crane, which was provided by us. We have reliable cooperated supplier and the price is competitive.
After several design changes and communications, this client confirmed the order with a payment term 30% deposit by TT and 70% balance by LC.
Due to the pandemic, shipping costs skyrocketed, rising from over $3,000 to $20,000 of a 40HQ container. This project needed 7x40HQ containers, as facing the high shipping fees, client postponed the shipment. It wasn't until a year and a half later, when the shipping costs dropped to $8,000, that the shipment was sent.
During this period, we waived the storage fees for this client`s steel structure workshop. We sincerely apologize for this unusual situation and have done our best to minimize this client's losses within our capabilities.
